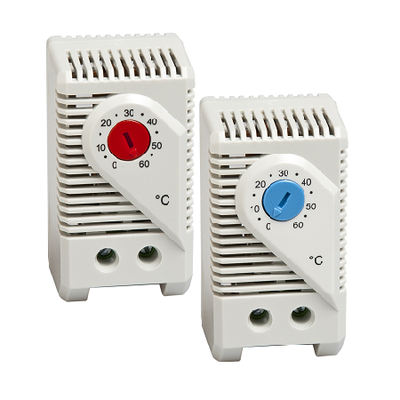

Small Thermostat KTO 011 / KTS 011
Thermostat (NC): Thermostat opens on temperature rise – for regulating heaters or for switching signal devices. Comes with a red temperature dial.
Thermostat (NO): Thermostat closes on temperature rise – for regulating filter fans and heat exchangers or for switching signal devices. Comes with a blue temperature dial.
- Compact design
- Wide adjustment range
- Color-coded temperature dials
- DIN rail mountable
- Compact design
- Wide adjustment range
- Color-coded temperature dials
- DIN rail mountable
|
Sensor element
|
: Thermostatic bimetal
|
|
Contact type
|
: Snap-action contact
|
|
Dimensions
|
: 2.4 x 1.3 x 1.7” (60 x 33 x 43 mm)
|
|
Connection
|
: 2-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire1 - AWG 16 max. (1.5 mm²)
|
|
Housing
|
: Plastic, UL 94V-0, light grey
|
|
Storage temperature
|
: -49 to +176 °F (-45 to +80 °C)
|
|
Protection class
|
: IP20
|
