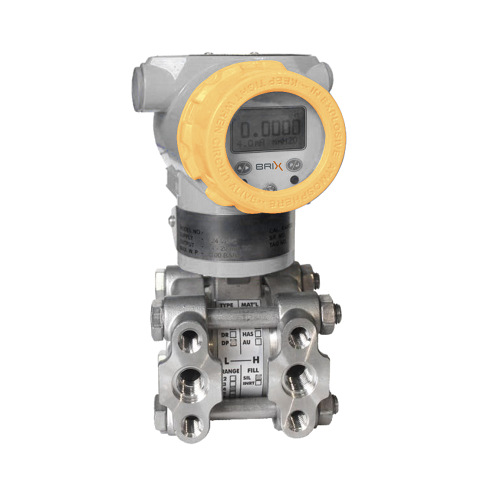

Smart Differential Pressure Transmitter - DPT100S

Brix series DPT100S micro-controller based design which has capacitive type pressure sensing element. is suitable for Differential Pressure measurements. It is used for various industrial applications. It can be used for Liquid, Gas & Vapor pressure measurements. It is having wide ranges of pressure with high accuracy & linearity output in the form of electrical signal 4-20 mA DC with HART communication.

  • Capacitive Sensor with Diaphragm
  • ATEX Certified
  • Rigid Construction
  • Two Wire System
  • Range-ability 100:1
  • LCD Display
  • Application flexibility with HART Communication
  • Non-Intrusive Magnetic Controls

  • 2-Wire-System : 4-20mA , 0 – 10V , 4-20mA with HART
  • Supply Voltage : 12.5 – 45 VDC
  • Signal Range : 3.9mA – 20.8mA
  • Ambient Conditions : -20 to 70°C
  • Ingress Protection : IP 66
  • Certification : CE & ATEX
