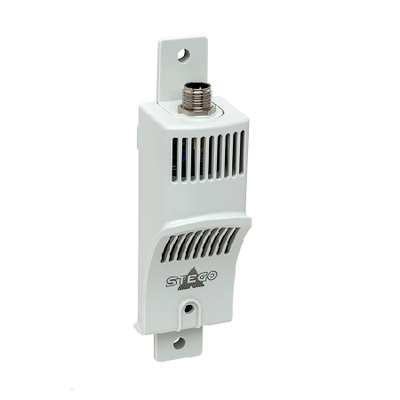

Smart Sensor CSS 014
The compact Smart Sensor CSS 014 electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA or a digital IO-Link signal. The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control. The Smart Sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.
- Analog/digital interface
- Small size
- Easy clip and/or screw fixing
- Quick connection (M12 plug-in connector)
- High accuracy
- Large temperature and humidity range
- Various application areas (IEC 61010-1/DIN EN 61010-1)
|
Max. reaction time
|
: 3 min.
|
|
Load resistance
|
: ≤ 500 Ω (4-20 mA only)
|
|
Dimensions
|
: 140 x 40 x 38 mm
|
|
Connection
|
: M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded, shielded
|
|
Housing
|
: Plastic according to UL94 V-0, light grey
|
|
Storage temperature
|
: -40 to +85 °C (-40 to +185 °F)
|
|
Protection class
|
: IP20 (sensor only IP57) / III (SELV)
|
|
Approvals
|
: VDE and UL File No. E500143 (acc. to IEC 61010-1/DIN EN 61010-1)
|
