Stabilized power supplies with adjustable output S200REG
S200REG/16 from 14 to 18 Vdc, maximum current 500 mA
S200REG/24 from 22 to 26 Vdc, maximum current 350 mA
Used industrially for powering instruments that require a stabilized power supply.
- The input is protected against line overvoltages by means of a varistor.
- The insulation between the mains and low voltage circuits is 4500 Vac.
- The outputs are self-protected against short circuits.

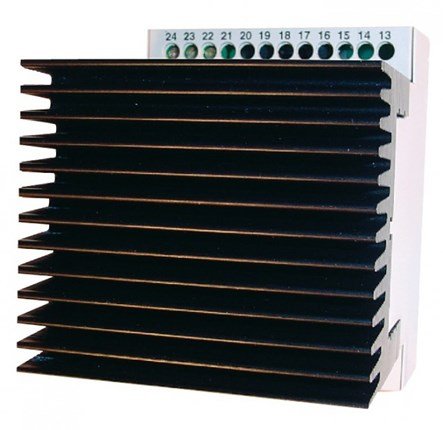

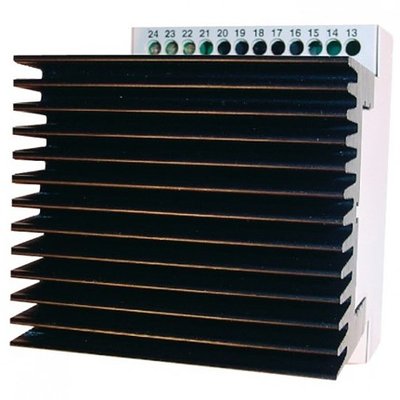

- The self-extinguishing Noryl case is the width of 4 DIN modules, with heatsink on the upper side, and is designed to fit on 35 mm mounting rail (DIN 46277).
|
Outputs
|
: S200REG/16 : 14 / 18 Vdc 500 mA
|
|
Dimensions (b x h x d)
|
: 70 x 95 x 105 mm
|
|
Humidity
|
: 90 % a 40 °C (non-condensing)
|
|
Weight
|
: Approx. 700 g.
|
|
Operating temperature
|
: - 10 / + 60 °C
|
