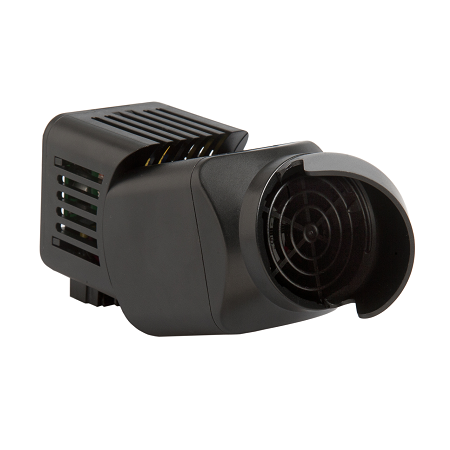

StegoJet SJ 019
The STEGOJET is a compact, powerful built-in fan. It allows precise cooling of heat sources and the airflow prevents the formation of heat pockets. Its design offers a maximum rotation range with an air output in almost any direction. The dual clip system (two clips at a 90° angle) allows four different positions on a DIN rail, while the hinge in the housing can be moved at a 40° angle. Additionally, the airflow at the air outlet can be directed at a 45° angle and the air duct can be turned 360°.
- Prevents heat pockets
- Wide voltage range
- Compact design
- Quick connection
- Clip or screw mounting
- Prevents heat pockets
- Wide voltage range
- Compact design
- Quick connection
- Clip or screw mounting
|
Axial fans, ball bearing
|
: Air flow 16.2 cfm (27.6 m³/h), free flow service life 40,000 h at 140 °F (60 °C) and 90 %RH
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Connection
|
: 2-pole dual cage clamp for solid wire - AWG 14 (2.5 mm²), stranded wire (w/ wire end ferrule) - AWG 16 (1.5 mm²)
|
|
Operating temperature
|
:+14 to +140 °F (-10 to +60 °C) / -22 to +158 °F (-30 to +70 °C)
|
|
Protection class
|
: II (double insulated) / IP20
|
|
Approvals
|
: UL File No. E234324, VDE
|
