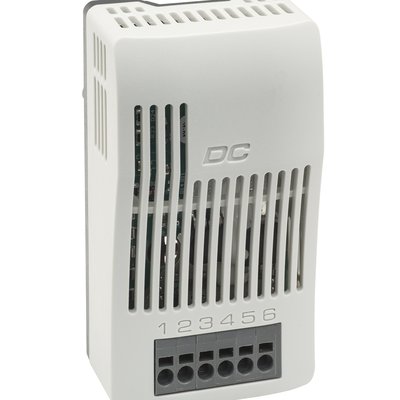

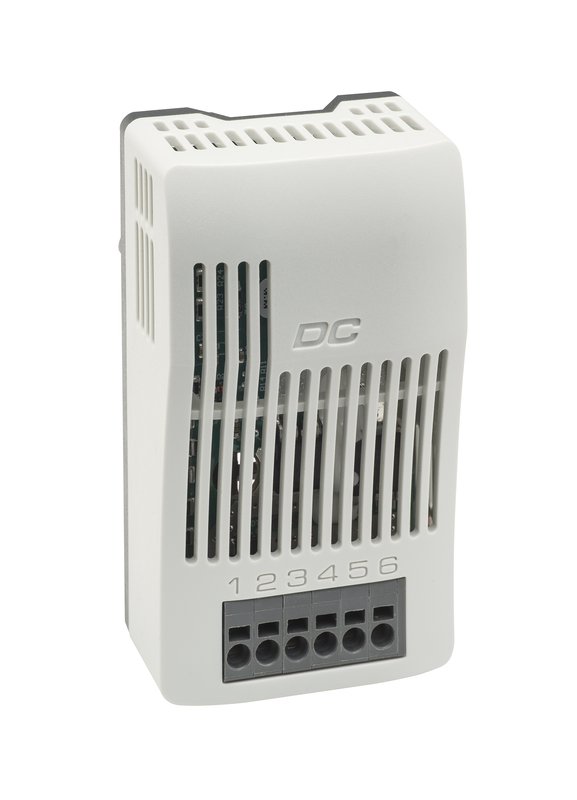

Switch Module (RELAY) DCM 010
The DCM 010 is used to control DC powered devices with high capacities in control and switch cabinets. It is controlled via an external potential-free contact (thermostat or hygrostat), which is connected between terminal 3 and 4. It must be ensured that the external contact is suitable to switch the required signal current without any problems.
- High DC switching capacity
- Variety of applications
- Wide DC voltage range
- Simple connection
- High DC switching capacity
- Variety of applications
- Wide DC voltage range
- Simple connection
|
Switching difference (humidity)
|
: 4 % RH (±1 % tolerance) at +77 °F (+25 °C), 50 % RH
|
|
Control contact – signal current
|
: 3 mA at DC 20 V / 4.5 mA at DC 24 V, 14 mA at DC 48 V / 17 mA at DC 56 V
|
|
Contact type
|
: NO - normally open (MOSFET
|
|
Dimensions
|
: 3.7 x 2.1 x 1.7" (93 x 53 x 44 mm)
|
|
Connection:
|
: 6-pole terminal: stranded wire1 AWG 16 (1.5 mm²); max. AWG 12 (2.5 mm²)
|
|
Housing:
|
: Plastic, UL 94V-0, grey (bicolor)
|
|
Storage temperature:
|
: -40 to +176 °F (-40 to +80 °C)
|
|
Protection type/Protection class:
|
: IP20
|
|
Approvals
|
: UL File No. E164102, VDE, EAC
|
