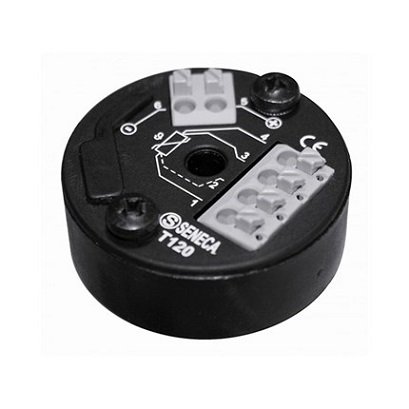

Temperature Transmitters T120
High precision temperature transmitters for head mounting, T120 and T121, are designed for universal application on machines, plants, installations and in process industry. They convert the input signals and retransmit them into a normalized signal in current through a 4-20 milliAmpère loop. Input signals can come from 2, 3, 4-wire RTD sensors such as Pt100 (EN 60751) and Ni100 (DIN 43760). The T121 model also acquires Pt500, Pt1000, and thermocouple signals from J, K, R, S, T, B, E, N type (EN 60584), voltage and resistance. T120 and T121 are characterized by compact size and spring clamps connections. All available operating parameters are configurable by EASY SETUP / EASY LP software.
- The configuration of T120 and T121 transmitters can be done through EASY USB device, which converts the USB serial signal from the PC into a serial UART TTL signal and vice versa, and EASY LP software.
- The transmitters can be configured even if not powered by 4..20 mA loop, taking power supply from the programming connector.
- T120 and T121 transmitters can be configured via S11P1, USB - RS232 / TTL converter and EASY LP software.
- The transmitters can be configured even if not powered by 4..20 mA loop, taking power supply fron the programming connector.
|
Power supply
|
: 5-30 Vdc (loop powered)
|
|
Sampling period
|
: 100 ms (300 ms con reiezione 50/60 Hz)
|
|
Protection degree
|
: IP20
|
|
Accuracy
|
: class 0,1%
|
