Temperproof Dual Thermostat FTD011

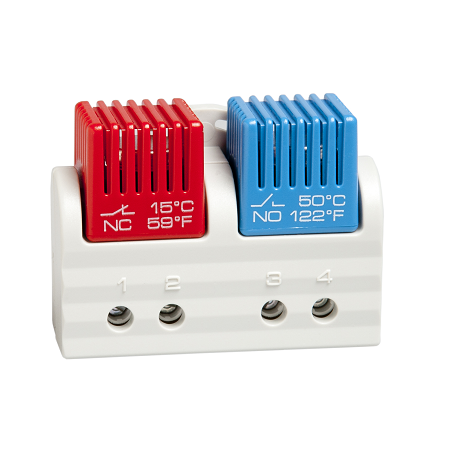

Two thermostats in one housing:
Tamperproof (Pre-set) Thermostat NC (normally closed): Thermostat opens on temperature rise (red module housing) – for regulating heaters or for switching signal devices when the temperature has fallen below the minimum value.
Tamperproof (Pre-set) Thermostat NO (normally open): Thermostat closes on temperature rise (blue module housing) – for regulating filter fans, heat exchangers, cooling devices, or for switching signal devices when temperature limit has been exceeded.
- NC / NO or NO / NO in one unit
- Fixed set points
- Color coded modules
- DIN rail mountable
- NC / NO or NO / NO in one unit
- Fixed set points
- Color coded modules
- DIN rail mountable
|
Sensor element
|
: Thermostatic bimetal
|
|
Contact type
|
: Snap-action contact
|
|
Dimensions
|
: 1.85 x 2.5 x 1.3” (47 x 63 x 33 mm)
|
|
Connection
|
: 4-pole terminal, clamping torque 0.8 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire1 - AWG 16 max. (1.5 mm²)
|
|
Housing
|
: Plastic, UL 94V-0, light grey
|
|
Storage temperature
|
: -40 to +176 °F (-40 to +80 °C) / -49 to +176 °F (-45 to +80 °C)
|
|
Protection class
|
: IP20
|
