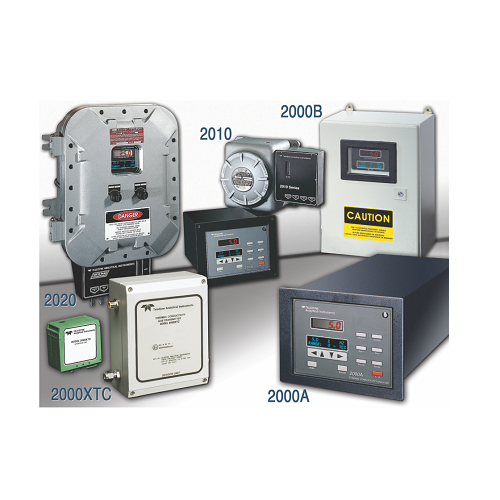

Thermal Conductivity Analysers - 2000 Series
The Series 2000 represents a complete line of Thermal Conductivity Detector (TCD) based Analysers which can be applied in a wide range of applications and industries. By using field proven filament-based and semiconductor based TC detectors, Teledyne is able to continuously monitor hydrogen and a variety of other gases of interest in either binary or multi-component sample gas streams.
- Customer selectable gas constituents; 11 gases, 110 combinations
- Automatic linearization
- Auto-ranging with manual override to lock into specific range
- Alphanumeric display which prompts and informs operator
- Auto and remote initiated calibration capabilities
- Bi-directional RS-232 serial digital communication port
- Extensive self-diagnostic capabilities
- 2 x programmable concentration alarm and system failure alarm relays
| System operating temperature |
: 32 to 122° F (0 to 50° C) |
| Signal output |
: Two 0-1 VDC (concentration and range ID); two 4-20 mA DC isolated (concentration and range ID) |
| Power requirements |
: 110 VAC, 50-60 Hz (220 VAC optional) |
| Max load impedance |
: 1000 ohms |
