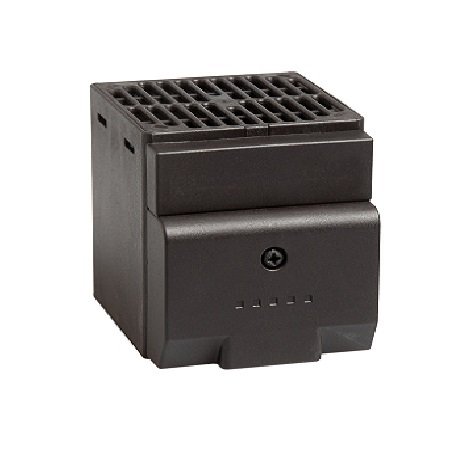

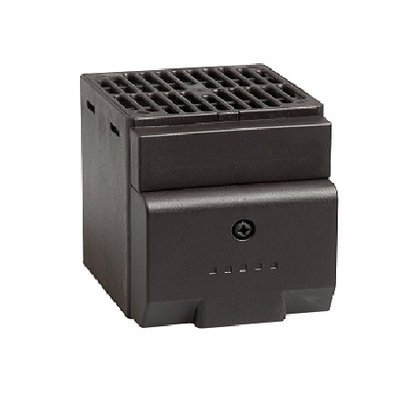

Touch-Safe Ptc Fan Heater CS 028 / CSL 028

The CS 028 / CSL 028 fan heaters prevent the formation of condensation and provide an evenly distributed interior air temperature in enclosures. The heaters are connected using the internal terminal connectors. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. The small size of the CS 028 / CSL 028 heaters makes them ideal for use in enclosures where space is at a premium.

Talk to Our Experts Download Datasheet

  • Compact size
  • Quiet operation
  • DIN rail or screw mount available
  • Heating power adjusts to ambient temperature

  • Compact size
  • Quiet operation
  • DIN rail or screw mount available
  • Heating power adjusts to ambient temperature

  • Heating element : PTC resistor – temperature limiting
  • Heater body : Extruded aluminum profile, anodized
  • Axial fan, ball bearing : Service life 40,000 h at 104 °F (40 °C)
  • Housing : Plastic, UL 94V-0, black
  • Connection : 2-pole terminal AWG 14 max. (2.5 mm²) with strain relief, torque 0.8 Nm max.
  • Operating/Storage temperature : -49 to +158 °F (-45 to +70 °C)
  • Protection type/Protection class: : II (double insulated) / IP20
