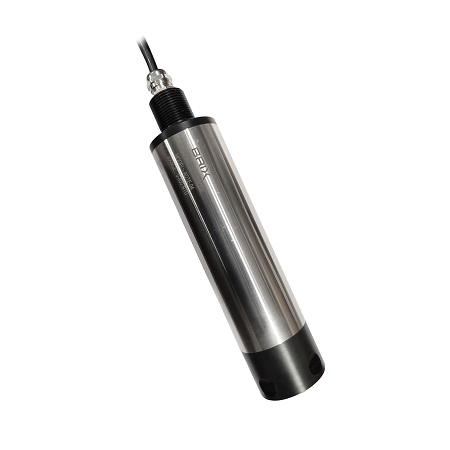

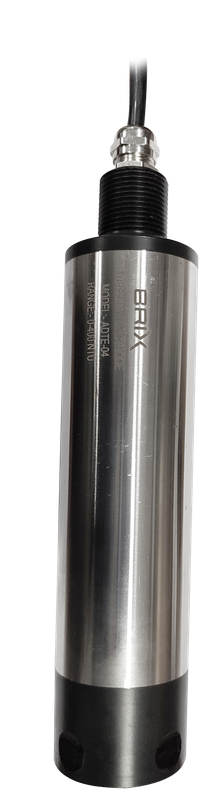

Turbidity Sensor
SMART ABTS sensor consists of a light source and a photodetector. Incident light is scattered by the particles in the sample,
and the scattered light is measured by the detector.
The sensor uses a long-life near-infrared LED (880 nm/850nm) and the 90°scattered light method under ISO1027/ EN27027 to
assure accurate turbidity values.
An automated mechanical wiper is available to remain the surface clean and remove air bubbles from the optical Window to
maximize the accuracy and minimize the maintenance requirement.
- Optical Sensor Near-infrared LED (880nm/850nm) and 90º scattered light method under ISO 1027/EN 27027
- The automated mechanical wiper is available for Surface cleaning & air bubble removal
- Robust & Waterproof (IP68) Digital sensor: Modbus RS-485
- Factory pre-calibration for easy setup and field calibration for more accuracy
- Fully compatible with PC software ViewTM for easy setup and data logging
| Measuring Principle | : Near-infrared LED (880nm/ 850nm) and 90° scattered light method under ISO 1027/EN ISO 1027/EN 27027 |
| Measuring Range | : 0 to 400 NTU /4000 NTU 0 to 1000 mg/L, up to 50 g/L |
| Pressure | : Max. 5 bar |
| Material | : SS |
