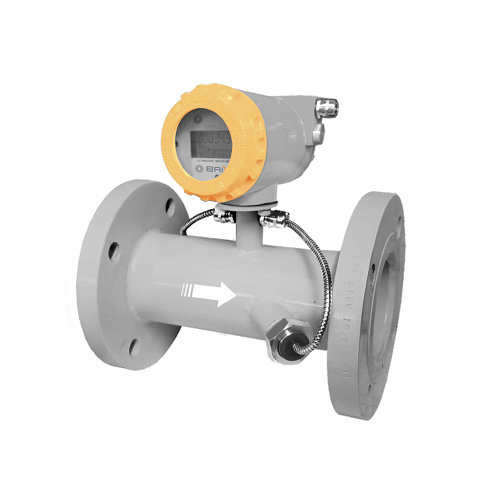

Ultrasonic Flow Meter - UF400

Brix series UF400 Ultrasonic flow meters give the flexibility to install a reliable flow meter, virtually anywhere, without distorting accuracy and performance. The flow meter is extremely easy to use, simple to install and requires no regular maintenance. The product is engineered for various industrial as well as domestic applications such as Municipal and Industrial Water applications, Cooling tower, Water treatment, etc. The LCD display provides indication for flow rate and totalized flow with key selection. The display auto shuts off after 10 minutes, which increases the battery life in case of battery powered flow meter. The display can be turned ON by pressing the ‘enter’ key.

Talk to Our Experts Download Datasheet

Ultrasonic Measurement using Transit Time Technology
Full Bore Type
Local Indication through LCD Display
Simple and Cost Effective Construction
Empty Pipe Indication
Automatic Meter Reading option over GSM, GPRS & RF
Electronic Protection Class : Field Mount Weather Proof IP-67,
DIN Standard (IP 54), Flameproof (CMRI IIA IIB Certified)
Leak, Burst and Tamper Detection
No Pressure Drop

Media : Liquids
Number of Paths : Single
Process Temperature : -20°C to 85°C maximum
Communication Output : RS485 (MODBUS RTU), G SM & GPRS
Output : 4 to 20mA DC, Pulse (Open Collector), Pulse (Active TTL), Frequency (0 to 1 KHz)
Power Supply : 24V DC (+/-10%), Solar Powered
Material of Construction : Flow tube – S S304, SS 316, PVC & MS
Certification : CE
