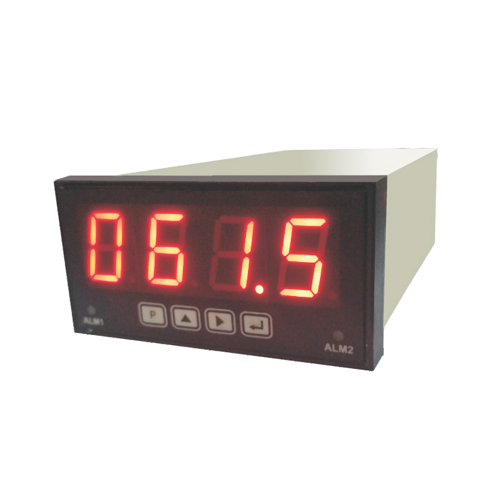

Universal Input Process Indicator – DPI-1

BRIX Series DPI-1 is universal input Process Indicator / Controller specially designed for various industrial applications. These can be used for monitoring and controlling parameters like Temperature, Humidity, Pressure, Flow, Level etc. The measuring range and control points are settable through the keypad on front fascia and control output is available at the rear terminals. Low cost design in compact size with large display height is additive feature of DPI-1.

  • ON/OFF controller
  • Single Channel
  • Universal Input
  • Open Sensor Indication
  • Software Calibration
  • Cold junction Compensation for thermocouple input

  • Type of Control : ON / OFF
  • Display : LED Display
  • Power Supply : 90 – 250V AC
  • Power Consumption : < 10 VA
  • Ambient Conditions : Temperature -20 to 55 °C / Humidity 5 to 95% non condensing
  • Transmitter Power Supply : 24V DC 30 mA, 24V DC 100 mA
  • Communication Port : RS485 with MODBUS RTU Protocol
