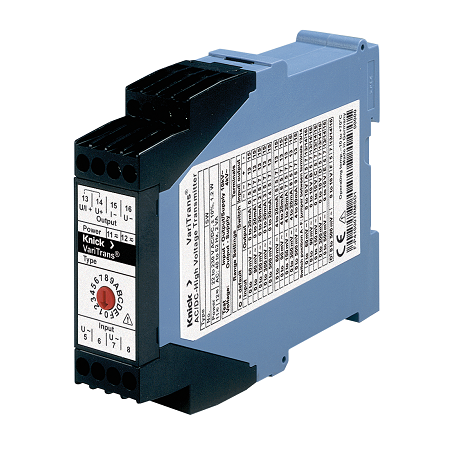

VariTrans P 41000

The VariTrans P 41000 are available for any input voltages from ±60 mV to ±100 V. Unipolar and bipolar (standard) signals are available at the output: ±20 mA, ±10 V and 4 … 20 mA. 16 input/output signal combinations can easily be selected with a rotary encoder switch on the front of the device. There is no need for a complicated on-site adjustment with screwdriver, calibrator and multimeter. Drift problems due to unstable trimming components – e.g., potentiometers – are avoided. Thanks to the easy scalability of the range selection, the devices can easily be customized to individual customer solutions. Up to 16 customized signal combinations can be implemented in one device and configured optimally for the respective application.

Talk to Our Experts Download Datasheet

  • Universal high voltage transducers
  • New TransShield technology
  • Working voltages up to 3600 V AC/DC
  • Protection against electric shock

  • Test voltages up to 15 kV AC
  • Mechanically stable
  • Robust
  • 5-year warranty

  • Ambient temperature : -10 to +70 °C
  • Design : Modular housing with screw terminals, 22.5 mm wide See dimension drawings for further measurements.
  • Mounting : For 35-mm DIN rail acc. to EN 60715
  • Weight : Approx. 180g
