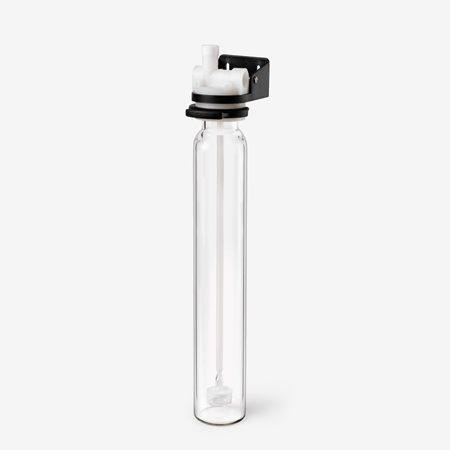

Wash bottle WF-AGF-PV-30

Gas analysis is a complex field. The sample gas to be analysed must be extracted and handled under quite diverse conditions to yield representative and reliable analysis results. There frequently is a need to remove gaseous components from the sample gas by washing these out. The WF-AGF-PV-30 wash bottle is a product suitable for this purpose. The wash bottle is filled with water or another suitable medium to wash out interfering components. It is made from non-corrosive PVDF and glass. The Unique quick-release fastener allows for easy medium changes. The bottom gas inlet ensures sufficient contact times. An optional version with bubbler ensures the gas is finely dispersed in the washing medium.
Talk to Our Experts Download Datasheet

  • Bühler Unique quick-release fastener.
  • Quick and easy washing medium changes without tools.
  • Variable wall mount.

Variable wall mount. Bubbler optional. Quick and easy washing medium changes without tools.

Material – filter head: PVDF
Material – filter cover: Duran
Material – gasket: Viton
Weight: approx. 0.5 kg
Max. operating pressure: 4 bar
