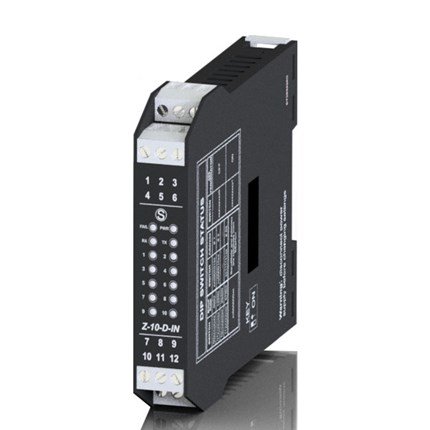

Z--10--D--IN RS485 Modbus Module 10 Digital Inputs

The Z-10-D-IN module acquires 10 single-ended digital signals, then converts them to a digital format (IN 1-10 state). The supported communication protocol is Modbus RTU. The following counters are available: All 10 counters are in 32 bits format (backupped on a Not volatile RAM) For all 10 inputs TON/TOFF/Frequency measures are available.

Talk to Our Experts Download Datasheet

Acquisition of digital signals from sensor: Reed, NPN, PNP, Proximity, contact, etc... Counters are saved to a non volatile memory (NVM FeRAM) Input signals can be filtered 32 bits Pulse counters for digital signals, with max frequency < 2500 Hz

Measure of Frequency / Period / Ton and Toff Advanced pulse management for digital signals Up to 10 sensors power by internal supply voltage (Vaux=16V) Node address and baud-rate configurable from Dip-Switches RS485 serial communication with MODBUS-RTU protocol

  • Input Number : 10
  • Input filter : Cut-off frequency configurable
  • Filter : Configurable
  • Protection : This module provides inputs and power supply (Vaux) protection against the overvoltage surge transient by transient suppressor TVS (600W/ms)
