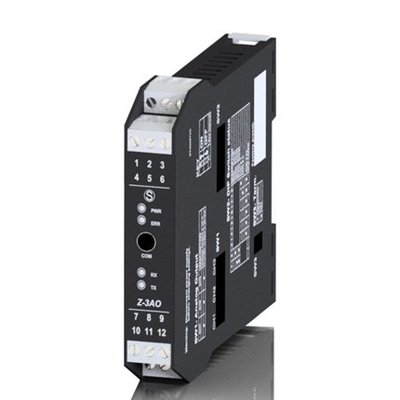

Z-3A0

The Z-3AO module supplies 3 single-ended analog signals (voltage or current type).
Talk to Our Experts Download Datasheet

Output protection against the overvoltage surge transients and short-circuits Configuration of the module (node) address, baud-rate and output-type (voltage or current) by Dip-Switches It is possible to add/remove the module to/from RS485-bus without disconnecting the communication or power supply It is possible to switch automatically RS485 to RS232 or vice versa

It is possible to choose if each output is voltage or current type It is possible to change the electrical start/end scale between ± 10 V, 0-20 mA It’s possible to manage the electrical values (for each output) if the interval time of RS485-bus communication failure is greater than a configurable time (see Timeout register)

Response time: < 50 ms (step response, 10%-90%)

Accuracy Initial: 0.1% of Electrical End Scale (E.E.S.)

Linearity: 0.05% of E.E.S.

Calibration: 0.2% of E.E.S.

Thermal stability: 0.01%/°C

EMI: < 1%

Protection Protection against the overvoltage surge transients by transient suppressor (400W/ms); protection against the output short-circuits by internal series PTC Voltage-type OUT Bipolar with E.S.S./E.E.S.(Electrical Start/End Scale) configurable

See Related Products

TRMS CONTINUOUS AND ALTERNATE VOLTAGE CONVERTER Z204-1

TRMS CONTINUOUS AND ALTERNATE VOLTAGE CONVERTER Z204-1

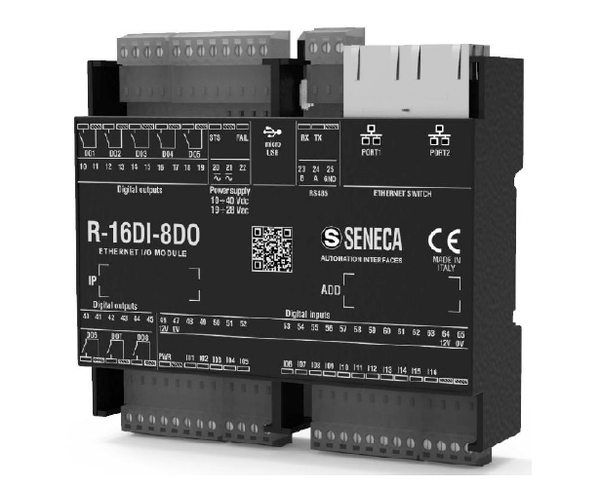

16-CH DIGITAL INPUTS, 8-CH DIGITAL OUTPUTS ETHERNET MODULE R-16DI-8DO
