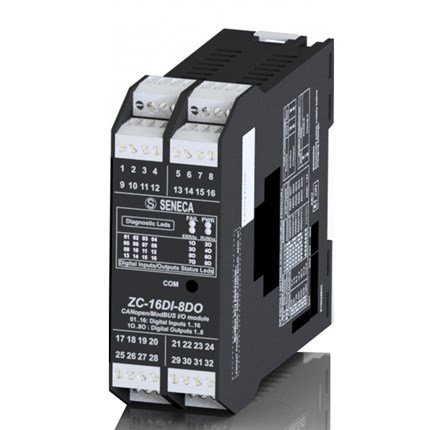

ZC-16DI-8DO 16-CH digital input, 8-CH digital output CANopen - MODBUS module
Acquires 16 single-ended digital signals, it converts them to a digital format (IN 1-16 state) and it counts the input-pulse number (pulse counter for IN 1-8).
Controls 8 digital outputs (OUT1-OUT8), each of them (by MOSFET) actives/deactivates a output load. Z-PC line is a complete line of I/O modules with CANopen standard interface that does not require any couplers, controllers, or repeaters. All modules have an integrated interface with CANopen communication, speeds up to 1 Mbps, and they are ideal for acquisition and control signals for system and machines where the distance between signals plays a key role. Z-PC line CANopen modules can be integrated with third parts configurators and master controllers / network managers, even on board existing machines and installations.
- Acquisition of digital signals from sensor: reed, NPN, PNP, proximity, contact, etc...
- Configuration of a filter applied to input signals IN1-IN8 (noise filter) to attenuate the noise overlapped to the digital signals
- Pulse counters for digital signals IN1-IN8, with max frequency equal to 10kHz, 32bit-registers
- Advanced management of the pulse counters for digital signals IN1-IN8 (for each pulse counter: overflow, preset value and reset/preset command are available).
- Power of 16 sensors using internal supply voltage (Vaux=16V)
- It is possible to manage the output state if the interval time of RS485-bus communication failure is greater than a configurable time (up to 25.5sec): output is kept at the previous value or output is overwritten on register.
- It is possible to switch automatically RS485 to RS232 or vice versa
- CAN interface with CANOpen protocol: max 1Mbps
| Power supply |
: 10-40 Vdc / 19-28 Vac |
| Power Consumption |
: 2.5 W |
| Isolation |
: 1.5 kVac (3 way) |
| Operating temperature |
: -20 to +50°C |
| Protection degree |
: IP20 |
