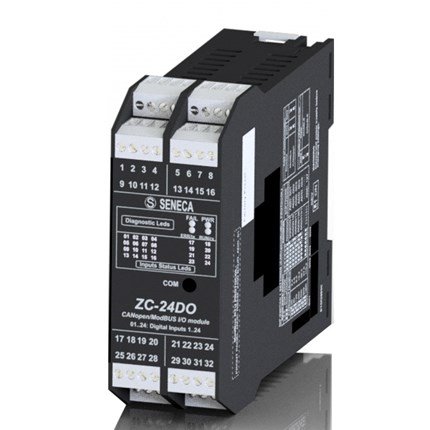

ZC-24DO 24-CH digital output CANopen - MODBUS module
Z-PC line is a complete line of I/O modules with CANopen standard interface that does not require any couplers, controllers, or repeaters. All modules have an integrated interface with CANopen communication, speeds up to 1 Mbps, and they are ideal for acquisition and control signals for system and machines where the distance between signals plays a key role. Z-PC line CANopen modules can be integrated with third parts configurators and master controllers / network managers, even on board existing machines and installations.
Outputs are available on 24 screw terminals or IDC 10/IDC 20 connectors, to facilitate the connection of 24V-relays.
It is possible to manage the output state if the interval time of RS485-bus communication failure is greater than a configurable time (up to 25.5sec): output is kept at the previous value or output is overwritten on register.
It is possible to manage the output state if there is a over-temperature or short-circuited (towards ground).
Configuration of the module (node) address and baud-rate by Dip-Switches.
It is possible to add/remove the module to/from RS485-bus without disconnecting the communication or power supply.
It is possible to switch automatically RS485 to RS232 or vice versa.
CAN interface with CANOpen protocol: max 1Mbps.
Power supply : 10-0 Vdc / 19-28 Vac
Power Consumption : 2,5 W
Operating Temperature : -10 to-65˚C
Isolation : 1.5 kVac (3 way)
Communication Time : 1,2 ms
Protection Degree : IP20
