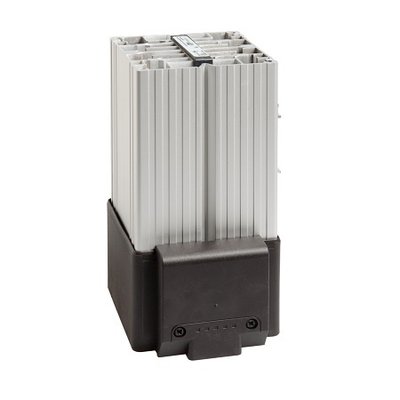

Fan Heater HGL 046

The compact HGL 046 fan heater prevents the formation of condensation. The integrated high-performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. The heater is wired using the internal terminal connectors.

Talk to Our Experts Download Datasheet

Compact size
Built-in overheat protection
Long service life
DIN rail mountable

Compact size
Built-in overheat protection
Long service life
DIN rail mountable

Heating element	: Resistance - micanite
Overheat protection	: Built-in temperature limiter
Heater body	: Extruded aluminum profile, anodized
Axial fan, ball bearing	: Service life 50,000 h at 77 °F (25 °C)
Housing	: Plastic, UL 94V-0, black
Connection	: 3-pole terminal AWG 16 max. (1.5 mm²) with strain relief, clamping torque 0.8 Nm max.
Operating/Storage temperature	: -49 to +158 °F (-45 to +70 °C)
Protection type/Protection class	: I (grounded) / IP20
