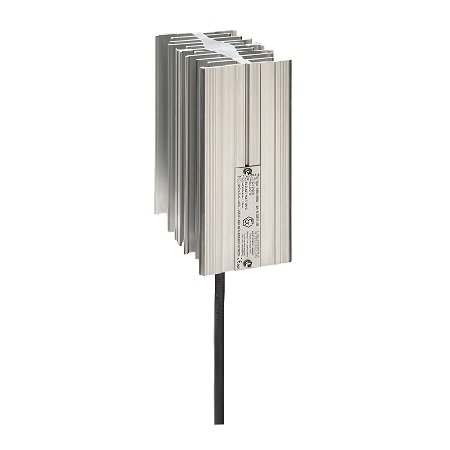

Hazardous Area Heater CREx 020_T4
Compact convection heater of temperature class T3 (392 °F / 200 °C max.) for use in hazardous areas for prevention of formation of condensation, temperature fluctuations, and for protection against frost in control and switch cabinets, as well as in measuring equipment.
- For use in hazardous areas
- Large convection surface
- DIN rail and screw mounting
- Ready-to-use with strain relief
- Maintenance free
- Temperature class T4
- For use in hazardous areas
- Large convection surface
- DIN rail and screw mounting
- Ready-to-use with strain relief
- Maintenance free
- Temperature class T4
|
Heating element
|
: High performance cartridge
|
|
Temperature class
|
: T4
|
|
Ex Protection type II 2 GD Gases
Dusts
|
: Ex db IIC T3 Gb
: Ex tb IIIC T200 °C Db IP66
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Connection
|
: Silicone cable (halogen-free) 3 x AWG 18 (0.75 mm²), length 3 ft (1 m)
|
|
Operating/Storage temperature
|
: -76 to +185 °F (-60 to +85 °C)
|
|
Protection type/Protection class
|
: IP66 / I (grounded)
|
|
Approvals
|
: EPS 16 ATEX 1 109 X, IECEx EPS 16.0048X CREx 020 with EAC
|
