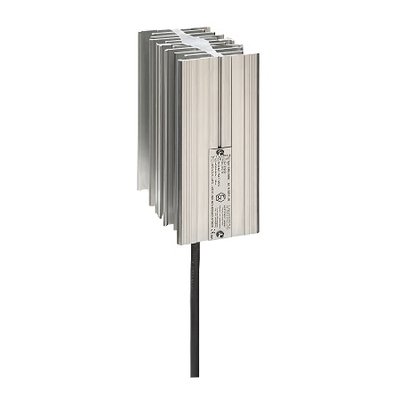

Hazardous Area Heater CREx 020_T5
Compact convection heater of temperature class T3 (392 °F / 200 °C max.) for use in hazardous areas for prevention of formation of condensation, temperature fluctuations, and for protection against frost in control and switch cabinets, as well as in measuring equipment.
- For use in hazardous areas
- Large convection surface
- DIN rail and screw mounting
- Ready-to-use with strain relief
- Maintenance-free
- Temperature class T5
- For use in hazardous areas
- Large convection surface
- DIN rail and screw mounting
- Ready-to-use with strain relief
- Maintenance-free
- Temperature class T5
| Heating element |
: High performance cartridge |
| Temperature class |
: T5 |
| Ex Protection type II 2 GD Gases
Dusts |
: Ex db IIC T3 Gb,
: Ex tb IIIC T200 °C Db IP66 |
| Housing |
: Plastic, UL 94V-0, black |
| Connection |
: Silicone cable (halogen-free) 3 x AWG 18 (0.75 mm²), length 3 ft (1 m) |
| Operating/Storage temperature |
: -76 to +185 °F (-60 to +85 °C) |
| Protection type/Protection class |
: IP66 / I (grounded) |
| Approvals |
: EPS 16 ATEX 1 109 X, IECEx EPS 16.0048X, CREx 020 with EAC |
