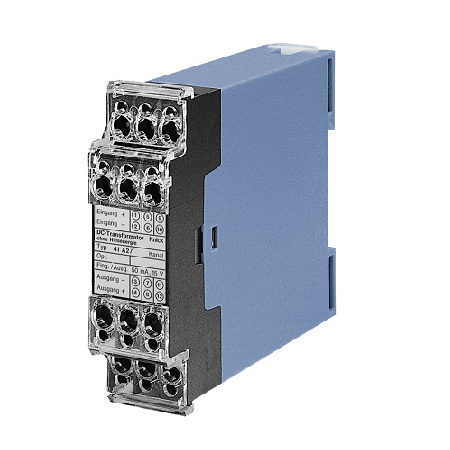

IsoTrans 41
The devices work with a serial chopper generator in the current path. This avoids the accuracy-reducing current losses of normal parallel connected generators, considerably reduces the voltage drop, and ensures accurate transmission of even the lowest currents.
- No power supply
- Extremely high accuracy
- Broad range of applications
- Maximum reliability
- Marginal loading of measured signal
- Low signal delay
- Space-saving thanks to multi-channel versions
- Quality ensured by computer-controlled testing
| Ambient temperature |
: -25 to +80 °C |
| Design |
: Modular housing, 22.5 mm wide, screw terminals See dimension drawings for further measurements |
| Mounting |
: Snap-on mounting for 35 mm DIN rail according to EN 60715 or M4 screw mounting |
| Weight |
: Approx. 140g |
