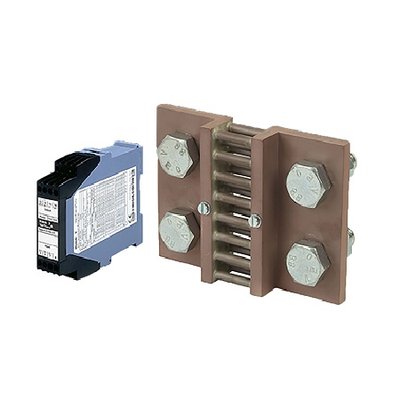

Maconic Shunt Resistors
The currents to be measured are associated with system voltages (potentials) which must be safely separated, i.e., galvanically isolated by the shunt isolator. Here, it is important that the voltage measurement is not affected by common mode influences. This can be achieved even for shunt voltages as low as 60 mV by suitably designed shunt isolators. Higher shunt voltages are not necessary with high-quality shunt isolators and because of the physically larger shunt resistors, they are generally not desired.
- For currents up to 15 kA
- Shunt accuracy:
- High overload capacity
- No influence from adjacent wires.
- 5-year warranty
- MTBF of 96 years
- Conversion to standard signals
- High overload capacity
| RoHS conformity |
: According to directive 2011/65/EU |
| Accuracy under rated conditions |
: Class 0.5 or Class 0.2 (optional: calibration to 0.1 %) |
| Rated conditions |
: 23 °C ± 1 K |
