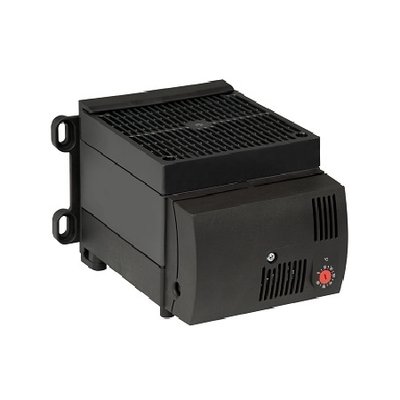

Panel-Mount Ptc Fan Heater CS 130
The compact CS 130 high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for panel or DIN rail mounting. For foot mounting on the bottom of an enclosure, the CS 030 fan heater is recommended
- Compact design
- Built-in overheat protection
- Double insulated plastic housing
- Panel or DIN rail mounting
- Integrated adjustable thermostat (optional)
- Compact design
- Built-in overheat protection
- Double insulated plastic housing
- Panel or DIN rail mounting
- Integrated adjustable thermostat (optional)
|
Heating element
|
: PTC resistor – temperature limiting
|
|
Overheat protection
|
: Built-in temperature limiter
|
|
Axial fans, ball bearing
|
: Service life 50,000 h at 77 °F (25 °C)
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Connection
|
: 2-pole terminal AWG 16 max. (1.5 mm²), torque 0.8 Nm max.
|
|
Operating/Storage temperature
|
: -49 to +158 °F (-45 to +70 °C)
|
|
Protection type/Protection class
|
: II (double insulated) / IP20
|
|
Dimensions
|
: 4.7 x 6.6 x 7.2" (120 x 168 x 182 mm)
|
