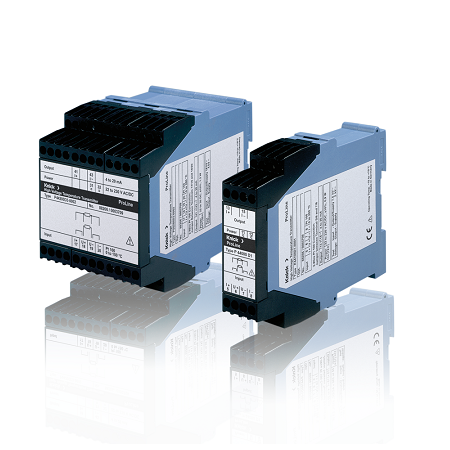

ProLine P 44000
When temperatures are to be measured using Pt100 resistance thermometers in high-voltage environments, standard temperature transmitters are often unsuitable due to their insufficient insulation. Resistance thermometers can be insulated against high voltage. In practice, however, the available installation space is often too small. Moreover, the insulation is weakened by thermal and mechanical aging. For temperature measurement on power electronics components, maximum safety is therefore provided by high-voltage resistant galvanic isolation from the Pt100 resistance thermometer. A typical application is the monitoring of the winding temperature of electric motors, generators or transformers.
- Transmitter for Pt100 temperature sensors
- Fixed range models for the input ranges:
- Impressed output current
- Compact modular housing
- High isolation
- Versions for lower insulation requirements
- Measurement error of just ± 1 K
- VariPower broad-range power supply
- Protected from environmental influences
| Ambient temperature |
: -40 to +85 °C |
| Design |
: Modular housing with screw terminals |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: D1: approx. 250 g D3: approx. 500 g |
