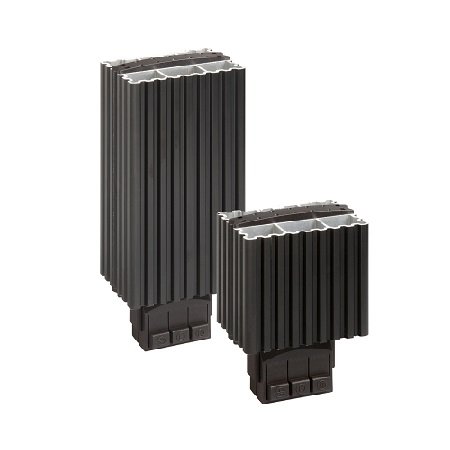

Ptc Heater HG 140
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature must be maintained above a minimum value. The aluminum profile heater body design has a chimney effect to distribute heat evenly. The cage clamp connectors save time and simplify installation.
- Compact size
- Wide voltage range
- Heating power adjusts to ambient temperature
- Cage clamp connectors for quick & easy wiring
- DIN rail mountable
- Compact size
- Wide voltage range
- Heating power adjusts to ambient temperature
- Cage clamp connectors for quick & easy wiring
- DIN rail mountable
|
Heating element
|
: PTC resistor - temperature limiting
|
|
Heater body
|
: Extruded aluminum profile, anodized
|
|
Operating voltage
|
: AC/DC 120-240 V (min. 110 V, max. 265 V)
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Connection
|
: 3 cage clamps for solid wire AWG 20-14 (0.5-2.5 mm²), and stranded wire (with wire end ferrule) - AWG 20-16 (0.5-1.5 mm²)
|
|
Operating/Storage temperature
|
: -49 to +158 °F (-45 to +70 °C)
|
|
Protection type/Protection class
|
: I (grounded) / IP20
|
|
Approvals:
|
: UL File No. E150057, VDE, GOST-R
|
