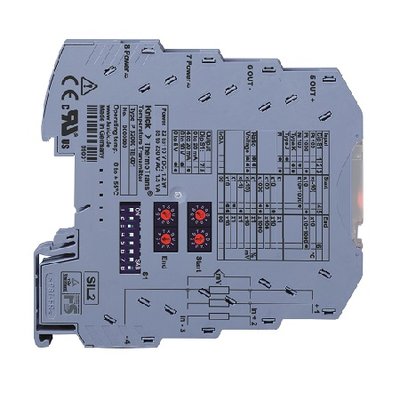

SensoTrans DMS P 32200
3-port isolation with protective separation up to 300 V AC/DC according to EN 61140 ensures optimum protection of personnel and equipment as well as unaltered transmission of measuring signals. The SensoTrans DMS P 32200 offer maximum performance in the smallest of spaces. Adjusting the zero point and sensitivity to the individual strain gauge sensor is particularly convenient via the infrared port, for example using a PDA. Sensors with known characteristics can be very easily calibrated using four rotary encoder switches and eight DIP switches.
- Universal usability
- Convenient parameter setting
- Intuitive configuration
- Calibrated range selection
- Minimum space requirement
- Easy adjustment
- Simulation
- Protective separation
- Functional safety
- Low-cost assembly
| Ambient temperature |
: 0 to +55 °C |
| Design |
: Modular housing with screw terminals, 6.2 mm wide See dimension drawings for further measurements |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 60g |
