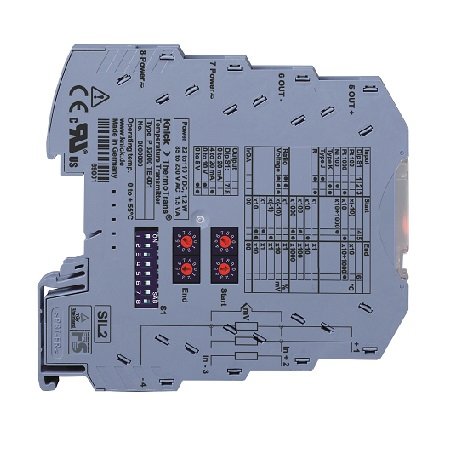

SensoTrans R A 20230
The universal SensoTrans R A 20230 resistance transmitters provide connection possibilities for all standard potentiometers for angle, path or position detection up to 50 kohms. They can be flexibly adapted to the respective measuring task using DIP and rotary encoder switches or via a “teach-in function“. 3-port isolation with protective separation up to 300 V AC/DC according to EN 61140 ensures optimum protection of personnel and equipment as well as unaltered transmission of measuring signals. The SensoTrans R A 20230 offer maximum performance in the smallest of spaces
- Universal usability
- Intuitive configuration
- Calibrated range selection
- Convenient adjustment
- Protective separation
- High accuracy
- Minimum space requirement
- Low-cost assembly
- 5-year warranty
| Ambient temperature |
: 0 to +55 °C |
| Design |
: Modular housing with screw terminals, 6.2 mm wide See dimension drawings for further measurements. |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 60g |
