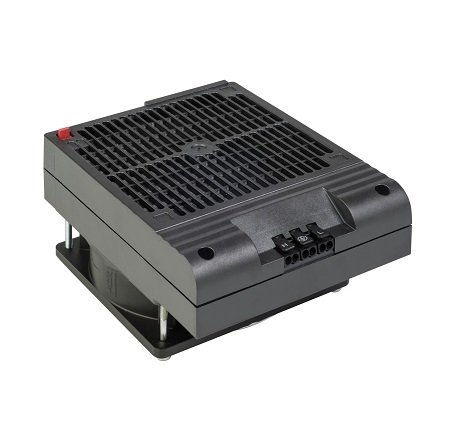

Space-Saving Fan Heater(OEM Version) HVI 030
The compact high-performance fan heater prevents the formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with a fan, but is also available without an axial fan (for self-installation). The fan heaters are available with two different mounting systems – either mounting by screws or with a new and unique twist clip mounting system. These options allow for quick and easy installation of the fan heater.
- Compact size
- Flat design
- Built-in overheat protection
- Twist clip or screw mountable
- End user must attach fan
- Compact size
- Flat design
- Built-in overheat protection
- Twist clip or screw mountable
- End user must attach fan
|
Heating element
|
: High-performance cartridge
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Overheat protection
|
: With automatic reset and second-tier one shot fuse
|
|
Connection
|
: 2-pole dual pressure clamp for solid wire AWG 14 max. (2.5 mm²), stranded wire (with wire end ferrule) AWG 16 max. (1.5 mm²)
|
|
Operating/Storage temperature
|
: UL: +14 to +104 °F (-10 to +40 °C), VDE: +14 to +122 °F (-10 to +50 °C)
|
|
Protection type/Protection class
|
: II (double insulated) / IP20
|
