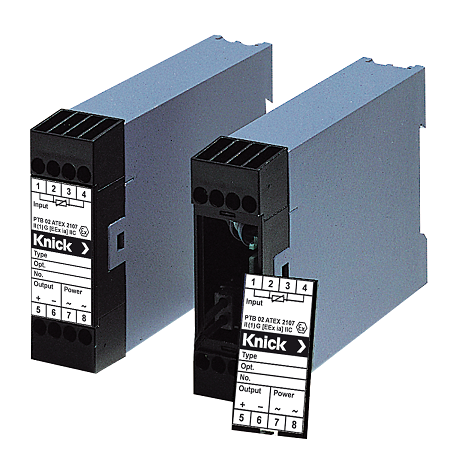

ThermoTrans 205/206
ThermoTrans 205/206 for Resistance Thermometers Resistance thermometers are highly accurate temperature sensors with long-term stability for measuring temperatures up to max. 850 °C. They are mainly used to measure low and medium temperatures, for example in the air-conditioning, process engineering, and food industries. The ThermoTrans 205/206 transmitters allow for connection of all common resistance thermometers either in 2-, 3-, or 4-wire configuration. The ability to connect resistance transducers and potentiometers creates a wide range of application possibilities, for example, in the field of displacement or position detection. Converting the input signal into a proportional current/voltage signal enables simple further processing.
Explosion protection [EEx ia] IIC according to ATEX
Wide range of standard models
EMC tested
Protective separation
Modular housing, 22.5 mm wide with 73.5 mm standard height
5-year warranty
| Ambient temperature : |
-10 to +60 °C |
| Ingress protection : |
Housing: IP 40, terminals: IP 20 |
| Mounting : |
With snap-on mounting for 35 mm DIN rail according to EN 60715 |
| Weight: |
Approx. 300g |
