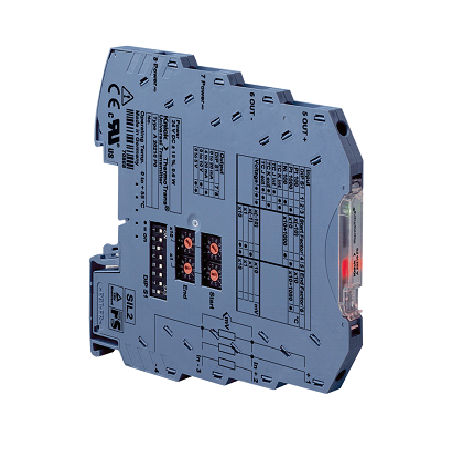

ThermoTrans A 20210
The flexible ThermoTrans A 20210 temperature transmitters provide connection possibilities for most of the common thermocouples and resistance thermometers. They can be flexibly adapted to the respective measuring task using DIP and rotary encoder switches.
3-port isolation with protective separation up to 300 V AC/DC according to EN 61140 ensures optimum protection of personnel and equipment as well as unaltered transmission of measuring signals. The ThermoTrans A 20210 offer maximum performance in the smallest of spaces. Resistance thermometers can be operated in 2-, 3- or 4-wire configuration. The connection configuration is automatically recognized, adjustment is not required. Thermocouples can be detected with internal or external reference junction compensation.
- Flexible use
- Intuitive configuration
- Calibrated range selection
- Automatic detection
- Protective separation
- High accuracy
- Minimum space requirement
- Low-cost assembly
- 5-year warranty
| Ambient temperature |
: 0 to +55 °C |
| Design |
: Modular housing with screw terminals, 6.2 mm wide See dimension drawings for further measurements. |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 60g |
