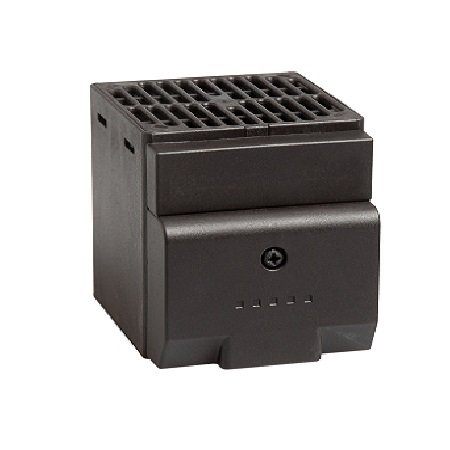

Touch-Safe Ptc Fan Heater CS 028
The CSF 028 fan heater prevents the formation of condensation and provides evenly distributed interior air temperature in enclosures. The touch-safe plastic housing and the small size makes it ideal for use in enclosures with a high packing density. The heater is equipped with a fixed set point thermostat and is easily wired via external pressure clamps. Two different mounting options are available – DIN rail or screw tabs. The robust screw tab mounting is particularly suitable for applications with high vibration.
- Compact size
- Integrated pre-set thermostat
- Quiet operation
- Heating power adjusts to ambient temperature
- DIN rail or screw tab mount available
- Compact size
- Integrated pre-set thermostat
- Quiet operation
- Heating power adjusts to ambient temperature
- DIN rail or screw tab mount available
|
Heating element
|
: PTC resistor – temperature limiting
|
|
Overheat protection
|
: Built-in temperature limiter
|
|
Axial fan, ball bearing
|
: Service life 40,000 h at 104 °F (+40 °C)
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Connection
|
: 2-pole dual pressure clamp for solid wire AWG 14 max. (2.5mm²), stranded wire (with wire end ferrule) AWG 16 max. (1.5 mm²)
|
|
Operating/Storage Temperature
|
: -40 to +158 °F (-40 to +70 °C) / -49 to +158 °F (-45 to +70 °C)
|
|
Protection type/Protection class
|
: II (double insulated) / IP20
|
