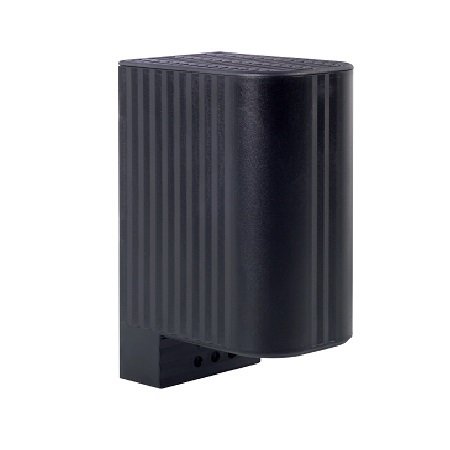

Touch-Safe Ptc Heater CS 060
The CS 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes natural convection which results in a circulating current of warm air. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. The CS 060 is also available in a version with a plug-in thermostat requiring no additional wiring (CSF 060).
- Low surface temperature
- Compact size
- Wide voltage range
- Double insulated protection
- DIN rail mountable
- Low surface temperature
- Compact size
- Wide voltage range
- Double insulated protection
- DIN rail mountable
|
Heating element
|
: PTC resistor – temperature limiting
|
|
Housing
|
: Plastic, UL 94V-0, black
|
|
Approvals
|
: UL File No. E150057, VDE, GOST TR
|
|
Connection
|
: 4-pole terminal AWG 14 max (2.5 mm²), torque 0.8 Nm max.
|
|
Operating/Storage temperature
|
: -49 to +158 °F (-45 to +70 °C)
|
|
Protection type/Protection class
|
: II (double insulated) / IP20
|
