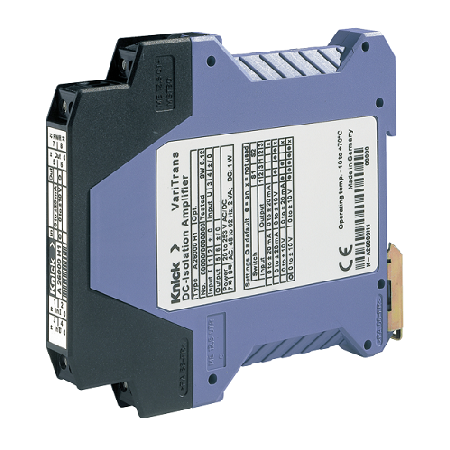

VariTrans A 26000
Knick provides a tailor-made solution. Thanks to the calibrated selection of the input and output parameters using DIP switches, VariTrans A 26000 universal signal conditioners can be used without complicated readjustment. The broad-range power supply for all common supply voltages from 20 to 253 V AC/DC offers maximum flexibility.
At a width of just 12.5 mm, the modular housing with pluggable screw terminals allows for simple and fast assembly and pre-wiring of enclosures. Housings with fixed screw terminals are also available for extremely high mechanical loads. The easy-to-open housing allows for simple configuration of the input and output ranges and provides good protection against contact and unintentional adjustment.
- Flexible and extremely precise
- Broad-range power supply
- Quick and easy configuration
- Pluggable screw terminals
- 3-port separation
- Maximum accuracy
- Specific test report
- Protective separation
- 5-year warranty
| Ambient temperature |
: -10 to +70 °C |
| Design |
: Modular housing, 12.5 mm wide, see dimension drawings for further measurements, pluggable screw terminals |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 150g |
