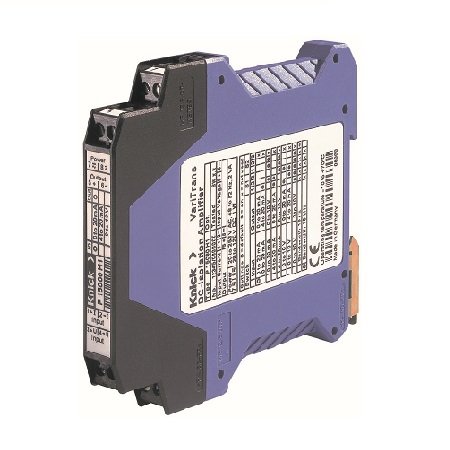

VariTrans P 15000
The VariTrans P 15000 signal conditioners feature excellent transmission quality combined with calibrated standard signal switching using DIP switches and a broad-range power supply.
Long transmission paths can cause potential differences that lead to errors in the measuring result. Different products were also required for different signals and supply voltages.
A microcontroller monitors the control element settings and controls the calibrated range selection. Interference with the signal transmission – due to contact resistance in the range switch, for example – is ruled out in this manner.
- Flexible and extremely precise
- Broad-range power supply
- Quick and easy configuration
- Pluggable screw terminals
- 3-port separation
- Maximum accuracy
- Specific test report
- 5-year warranty
- Protective separation
| Ambient temperature |
: -10 to +70 °C |
| Design |
: Modular housing with screw terminals, 6.1 mm wide See dimension drawings for further measurements. |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 150g |
