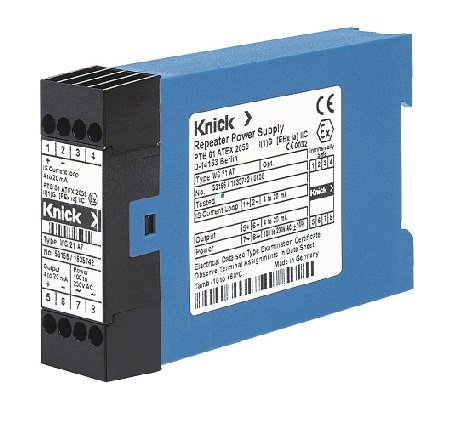

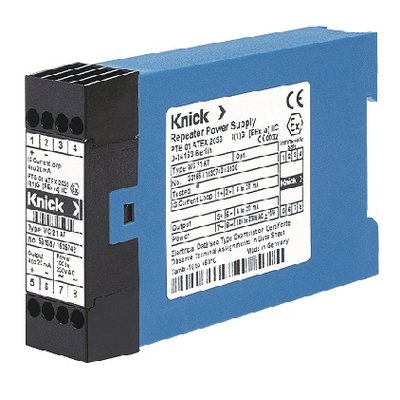

WG 21
The WG 21 provides protective separation and high isolation between the input, output, and power supply.
The high supply voltage, the good hazardous-area ratings, and the broad-range power supply allow for universal use. Cables up to 1400 m in length can be used without any problems. Thanks to a new transformer-based transmission technique, the WG 21 achieves an extraordinarily high transmission accuracy for hazardous-area applications. The encapsulation provides maximum operating safety, long-term stability, and disruptive strength even under extreme ambient conditions.
- SMART transmission
- High supply voltage and good hazardous area ratings
- Broad-range power supply
- Protective separation according to EN 61140
- 3-port isolation
- High transmission accuracy
- Explosion protection according to ATEX
- 5-year warranty
| Ambient temperature |
: +10 to +60 °C |
| Design |
: 22.5 Modular housing |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 250g |
