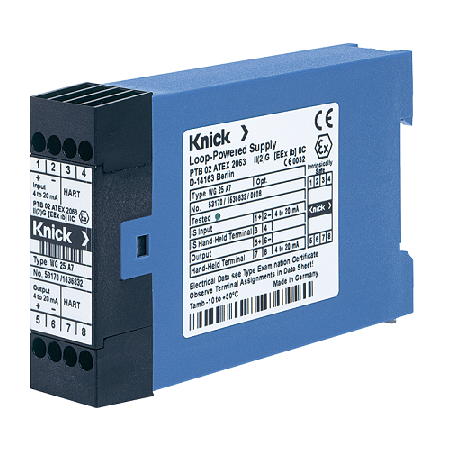

WG 25
The passive WG 25 repeater power supply is loop-powered. It is used for galvanic hazardous-area separation of a 2-wire supply line and transmits both 4 ... 20 mA and HART signals in both directions. With a voltage drop of just 4.2 V, the WG 25 uses the supply optimally so that all common 2-wire transmitters can be connected.
Multi-channel systems, for example, require only one central, safe-area power supply that does not even need protective separation.
- Affordable
- No mains supply required
- Low power losses
- Protective separation
- HART transmission
- EMC tested
- Maximum reliability
- 5-year warranty
| Ambient temperature |
: -10 to +50 °C |
| Design |
: Modular housing |
| Mounting |
: For 35-mm DIN rail acc. to EN 60715 |
| Weight |
: Approx. 120g |
